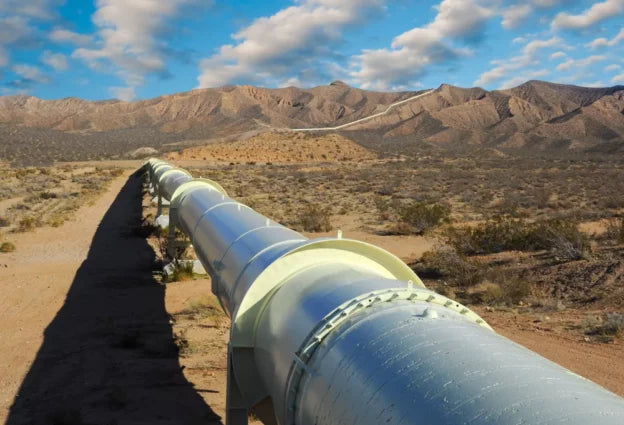

Pipeline Robotics Inspection Technologies
Pipeline robotics inspections have become a cornerstone of modern infrastructure management, offering advanced solutions for maintaining the safety, efficiency, and longevity of critical pipeline networks. As energy, water, and industrial sectors rely on vast networks of buried and above-ground pipelines, the need for reliable, non-invasive inspection methods has never been greater. Robotic technologies are transforming how operators detect defects, monitor integrity, and comply with regulatory standards, all while minimizing downtime and environmental impact.
This article explores the latest developments in robotic inspection for pipelines, the types of robots and sensors used, and the benefits these innovations bring to asset owners and operators. We'll also discuss how these technologies compare to traditional inspection methods and highlight best practices for integrating robotics into a comprehensive pipeline integrity program. For those interested in related approaches, our pipeline inline inspection resource offers further insights into inline tools and their applications.
How Robotic Inspections Are Changing Pipeline Maintenance
The adoption of robotics for pipeline assessment has revolutionized the industry by providing detailed, real-time data on pipeline conditions. Unlike manual inspections, which can be labor-intensive and limited in scope, robotic systems can travel long distances inside pipelines, navigate bends and diameter changes, and access areas that are otherwise difficult or dangerous for human inspectors.
These robotic tools, often referred to as "pigs" or crawlers, are equipped with a range of sensors and imaging devices. They can detect corrosion, cracks, weld anomalies, and other defects with high precision. The data collected allows operators to make informed decisions about maintenance, repair, and replacement, ultimately reducing the risk of leaks, spills, and costly failures.
Types of Robots Used in Pipeline Integrity Assessments
There are several categories of robots designed for pipeline inspections, each suited to specific environments and inspection goals. The most common types include:
- In-line inspection (ILI) tools: These are smart devices that travel with the product flow, using technologies such as magnetic flux leakage (MFL), ultrasonic testing (UT), and electromagnetic acoustic transducers (EMAT) to identify wall loss, pitting, and cracks.
- Remotely operated crawlers: These tethered or untethered robots are ideal for pipelines that cannot accommodate traditional pigs. They are maneuverable and can be equipped with cameras, lasers, and other sensors for visual and dimensional analysis.
- Free-swimming robots: Designed for water and wastewater pipelines, these autonomous vehicles can navigate complex networks, mapping and inspecting without interrupting flow.
The choice of robot depends on factors such as pipeline diameter, material, product type, and the specific inspection objectives.
Key Technologies Powering Robotic Pipeline Inspections
Modern robotic inspection devices rely on a suite of advanced technologies to deliver accurate and actionable results. Some of the most important include:
- Magnetic Flux Leakage (MFL): Detects changes in magnetic fields caused by metal loss or corrosion in ferrous pipelines.
- Ultrasonic Testing (UT): Uses high-frequency sound waves to measure wall thickness and identify cracks or laminations.
- Laser Profiling: Provides precise measurements of internal pipeline geometry, helping to detect dents, ovality, and deformation.
- High-Resolution Cameras: Capture visual evidence of defects, deposits, or blockages, supporting further analysis and documentation.
- Acoustic Sensors: Listen for leaks or structural anomalies by detecting sound waves generated by escaping fluids or gas.
By combining multiple sensor types, robotic inspection systems can deliver a comprehensive assessment of pipeline health, supporting proactive maintenance and risk management strategies.
Benefits of Robotic Assessments for Pipeline Operators
Integrating robotics into pipeline inspection programs offers a range of advantages:
- Increased safety: Reduces the need for personnel to enter hazardous environments or perform confined space entries.
- Minimal disruption: Many robotic tools can operate without shutting down the pipeline, maintaining product flow and reducing operational losses.
- Enhanced data quality: High-resolution sensors and automated data collection improve the accuracy and repeatability of inspections.
- Cost efficiency: Early detection of defects enables targeted repairs, extending asset life and preventing expensive emergency interventions.
- Regulatory compliance: Detailed inspection records help operators meet industry standards and reporting requirements.
For a deeper look at monitoring and alert solutions, see our guide on pipeline operational alerts.
Comparing Robotics With Traditional Pipeline Inspection Methods
Before the widespread adoption of robotics, pipeline inspections often relied on manual techniques such as visual surveys, pressure testing, and external ultrasonic measurements. While these methods are still valuable in certain contexts, they have notable limitations:
- Limited access to buried or submerged segments
- Potential for human error and inconsistent data collection
- Greater safety risks for inspection crews
- Longer downtime and higher operational costs
Robotic inspection devices overcome many of these challenges by providing automated, repeatable, and highly detailed assessments. This shift enables operators to move from reactive to proactive maintenance, reducing the likelihood of unplanned outages and environmental incidents.
To understand how these inspections fit into broader risk management, our overview of pipeline leak scenario planning offers practical strategies for emergency preparedness.
Integrating Robotics Into a Comprehensive Pipeline Integrity Program
Successful implementation of robotic inspection technologies requires careful planning and integration with other asset management practices. Key steps include:
- Assessing pipeline characteristics and selecting appropriate robotic tools
- Scheduling regular inspections based on risk and regulatory requirements
- Analyzing inspection data to identify trends and prioritize repairs
- Documenting findings for compliance and future reference
- Training personnel in robotic operations and data interpretation
Combining robotics with real-time monitoring, such as pipeline control room monitoring, further enhances situational awareness and response capabilities.
For an in-depth look at leak detection and monitoring best practices, the article pipeline monitoring and leak detection: essential technologies and practices provides expert perspectives on integrating robotics with other digital solutions.
Frequently Asked Questions
What types of defects can robotic pipeline inspections detect?
Robotic tools can identify a wide range of issues, including corrosion, cracks, weld anomalies, dents, ovality, blockages, and leaks. The specific defects detected depend on the sensors and technologies used by the robot.
Are robotic inspections suitable for all pipeline types?
Most modern robotic systems can be adapted for various pipeline materials, diameters, and product types. However, certain configurations may require custom solutions, especially for pipelines with sharp bends, diameter changes, or access restrictions.
How often should pipelines be inspected using robotics?
Inspection frequency depends on factors such as pipeline age, material, product transported, regulatory requirements, and risk assessment. Many operators schedule robotic inspections every 3–5 years, but high-risk or critical pipelines may require more frequent assessments.
Can robotic inspections be performed while the pipeline is in operation?
Yes, many in-line inspection tools are designed to travel with the product flow, allowing for assessments without shutting down operations. This minimizes disruption and helps maintain supply continuity.
Conclusion
The evolution of pipeline robotics inspections has set a new standard for asset integrity management. By leveraging advanced sensors, data analytics, and automated platforms, operators can achieve safer, more efficient, and cost-effective pipeline maintenance. As the technology continues to advance, integrating robotics with digital monitoring and scenario planning will further strengthen pipeline reliability and environmental stewardship.
For those interested in operational safety, our guide to pipeline shutdown procedures explains best practices for planned and emergency shutdowns.
