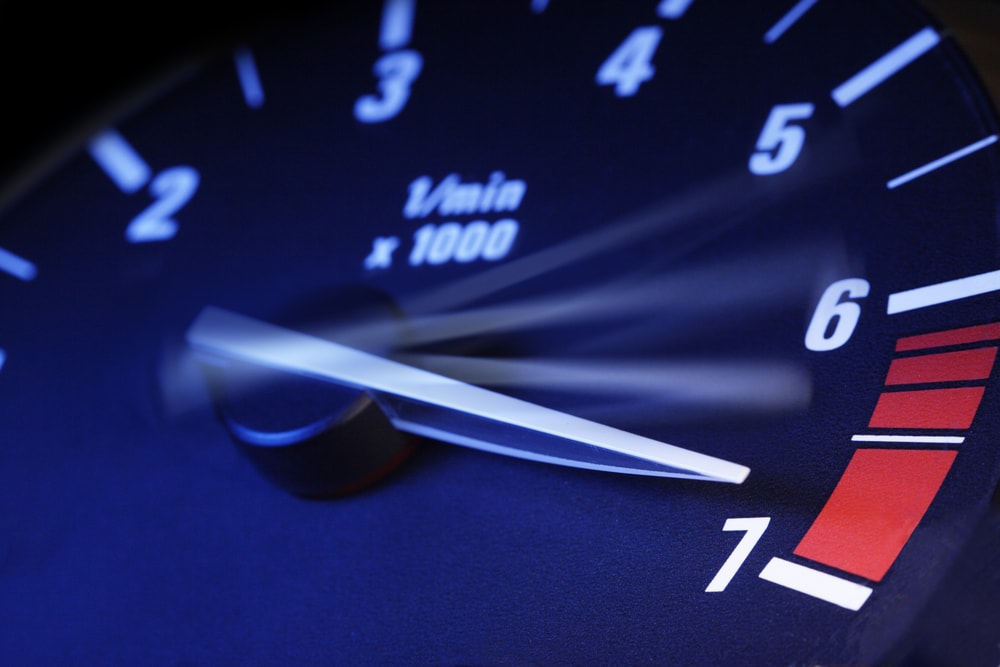

How to Set Tachometer: A Step-by-Step Guide for You?

A tachometer is an essential instrument in various fields, particularly in automotive and mechanical engineering. If youre a tech professional or an enthusiast, you know how crucial it is to get the readings right. This article aims to provide a detailed guide on how to set tachometer correctly, along with tips and tricks to ensure your measurements are spot on.

Understanding the functionality and proper setup of your tachometer is vital for precise monitoring of engine performance and efficiency. In this guide, well walk you through the steps to set your tachometer accurately and address common concerns.

What is a Tachometer?

Before diving into the specifics of how to set tachometer, it's essential to understand what it really is. A tachometer is a device that measures the rotational speed of a shaft or disk in machinery. It is usually displayed in revolutions per minute (RPM). For most automotive applications, a functioning tachometer enables better engine management.

For further reading, check out this resource on how tachometers work.

Types of Tachometers

There are several types of tachometers, including analog and digital models. Each has specific features and is suited for particular applications. Knowing the type of tachometer you have will help you set it correctly.

• Mechanical Tachometers: Utilize a flexible drive mechanism and provide readings through a needle gauge.
• Electronic Tachometers: Provide digital readouts and often come equipped with advanced functions.
• RFID Tachometers: Used in industrial settings, these rely on radio waves to gauge speed.

Essential Tools Required

Setting your tachometer requires minimal tools. Heres what you will need:

• Screwdriver: To open any covers or mounting.
• Wrench Set: For securing your tachometer in place.
• Multimeter: For verifying electrical connections.
• Tachometer Manual: Always handy for reference.

Steps to Set the Tachometer

Setting a tachometer accurately can be divided into several actionable steps. Be sure to follow these steps meticulously:

Step 1: Gather Information

Gather all relevant information about your vehicle or machine. Refer to the user manual to know the precise RPM values required for your application.

Step 2: Install the Tachometer

If you are installing a new tachometer or need to reposition an existing one, make sure it is mounted securely in a visible area. Pay close attention to wiring if your tachometer is electronic. For wiring assistance, refer to our link on wiring a VDO tachometer.

Step 3: Connect the Wires

If its an electronic tachometer, establish proper electrical connections. Youll typically need connections for power, ground, and the signal input from the engine. Use a multimeter to check that connections are correct.

Step 4: Calibrate the Tachometer

Calibrate your tachometer to the specifications. This process might vary depending on the model, but generally involves setting the RPM values according to manufacturer recommendations. Consult the tachometer manual for precise calibration instructions.

Step 5: Test the Tachometer

After you've completed the installation and calibration, it's time for testing. Start your engine and monitor the tachometer readings. You should see a linear response as engine speeds increase.

Step 6: Troubleshooting Common Issues

If you notice discrepancies in readings, refer to troubleshooting guides. You can also consult our article on checking tachometer accuracy.

Maintaining Your Tachometer

After setting your tachometer, maintenance is just as crucial. Regular checks can help ensure it remains accurate:

• Periodic Calibration: Depending on your vehicle type, calibration should be checked regularly.
• Visual Inspection: Inspect wires and connectors for wear or damage.
• Software Updates: Some digital tachometers offer updates that enhance accuracy.

Tachometer Uses in Different Fields

Besides automotive applications, tachometers are widely used in various industries such as manufacturing, aviation, and marine technology. They help in ensuring that machinery operates efficiently and safely.

Frequently Asked Questions

Q1: What could cause my tachometer to malfunction?

A1: Common issues include electrical connection problems, outdated calibration settings, or internal damage.

Q2: How often should I calibrate my tachometer?

A2: Calibration frequency can depend on usage but is generally recommended at least once a year.

Q3: Can I set my tachometer without a manual?

A3: While it's possible, it is not advisable as the manual often contains crucial information for calibration and setting.

For more detailed information on tachometer usage, visit our resource on how tachometers work on watches.
