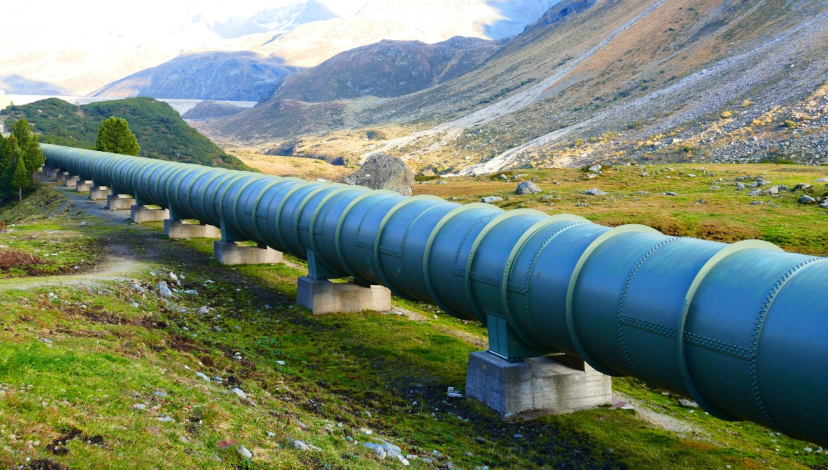

Pipeline Hydrostatic Testing Explained

Pipeline hydrostatic testing is a critical process in the oil, gas, and water industries, ensuring that pipelines can safely operate under pressure without leaks or failures. This method involves filling a pipeline with water (or another suitable liquid), pressurizing it to a specified level, and monitoring for any pressure drops that might indicate leaks or weaknesses. The results help operators confirm the structural integrity of new installations and verify the ongoing safety of existing infrastructure.

Understanding how this testing works, why it's required, and what steps are involved can help asset managers, engineers, and safety professionals maintain compliance and minimize risks. Early detection of issues through hydrostatic pressure testing is vital for preventing environmental incidents and costly repairs. For those interested in advanced monitoring, exploring pipeline health monitoring solutions can further enhance pipeline safety strategies.

What Is Hydrostatic Pressure Testing for Pipelines?

Hydrostatic pressure testing is a quality assurance process used to confirm that a pipeline can withstand its intended operating pressure. The procedure involves sealing the pipeline, filling it completely with water, and then increasing the internal pressure to a predetermined level—often higher than the pipeline's normal working pressure. The pressure is held for a set period while technicians observe for any loss that could indicate a leak or structural flaw.

This process is typically performed:

• Before a new pipeline is commissioned
• After repairs or modifications
• As part of periodic maintenance and regulatory compliance

By simulating real-world pressure conditions, hydrostatic testing helps verify that the pipeline is free from manufacturing defects, construction errors, or material degradation.

Why Is Pipeline Hydrostatic Testing Essential?

The main goal of hydrostatic testing is to ensure the safety and reliability of pipeline systems. Pipelines transport hazardous or valuable materials over long distances, often through sensitive environments or populated areas. A failure could result in environmental contamination, safety hazards, and significant financial losses.

Key reasons for performing these tests include:

• Leak detection: Identifies even small leaks that could worsen over time.
• Regulatory compliance: Many jurisdictions require regular testing to meet safety standards.
• Asset protection: Prevents costly failures and extends the pipeline’s service life.
• Public and environmental safety: Reduces the risk of spills and accidents.

Hydrostatic testing is often complemented by other technologies, such as ultrasonic leak detection and pipeline anomaly detection, to provide a comprehensive safety net for pipeline operators.

Step-by-Step Overview of the Hydrostatic Testing Process

A typical hydrostatic test for pipelines follows a structured sequence to ensure accuracy and safety. Here’s an outline of the main steps:

1. Preparation: The pipeline is isolated from the rest of the system. All air is purged to prevent inaccurate readings, and the test section is cleaned to remove debris.
2. Filling: The pipeline is filled with water or another suitable liquid. Water is most common due to its availability and non-compressibility.
3. Pressurization: The liquid is pressurized to a specified test pressure—usually 1.25 to 1.5 times the pipeline’s maximum operating pressure.
4. Holding: The pressure is maintained for a set duration (often several hours). Technicians monitor for pressure drops, which can indicate leaks or weaknesses.
5. Inspection: The pipeline and surrounding area are visually inspected for signs of leakage. Pressure readings are carefully recorded.
6. Dewatering and Drying: After the test, the water is safely removed and the pipeline is dried, especially if it will transport materials sensitive to moisture.
7. Documentation: Results are documented for regulatory compliance and future reference.

Each step must be performed with precision, as errors can compromise the test’s validity or even damage the pipeline.

Key Equipment Used in Pressure Testing

Several specialized tools and instruments are required for effective hydrostatic testing:

• High-pressure pumps: Used to inject water and achieve the desired test pressure.
• Pressure gauges and recorders: Provide real-time and logged pressure data.
• Isolation valves: Ensure the test section is securely separated from the rest of the pipeline.
• Air removal systems: Eliminate trapped air that could skew pressure readings.
• Leak detection equipment: Sometimes, advanced sensors or acoustic devices are used to pinpoint leaks.

The use of pipeline monitoring sensors can further enhance the accuracy and safety of the process, providing continuous data and early warning of anomalies.

Common Challenges and Best Practices

While hydrostatic testing is a proven method for verifying pipeline integrity, it does come with challenges:

• Water sourcing and disposal: Large volumes of water are needed, and proper disposal is essential to avoid environmental harm.
• Cold weather conditions: Freezing temperatures can complicate testing and require additional precautions.
• Residual moisture: Incomplete drying after testing can cause corrosion or contamination.
• Test pressure selection: Applying too much pressure can damage the pipeline; too little may not reveal all flaws.

Best practices include careful planning, using calibrated equipment, and thorough documentation. Integrating pipeline risk assessment methods with hydrostatic testing can help operators prioritize maintenance and allocate resources more effectively.

Regulatory Standards and Industry Guidelines

Pipeline hydrostatic testing is governed by a range of industry standards and regulations. Organizations such as the American Society of Mechanical Engineers (ASME), American Petroleum Institute (API), and local regulatory bodies set requirements for test pressures, durations, and documentation. Operators must stay current with these guidelines to ensure compliance and avoid penalties.

In addition to hydrostatic testing, many operators implement modern pipeline leak detection systems to provide ongoing monitoring and rapid response to any incidents.

Frequently Asked Questions

How often should pipelines undergo hydrostatic testing?

The frequency depends on regulatory requirements, pipeline age, material, and service conditions. New pipelines are tested before commissioning, while existing lines may require periodic retesting every few years or after significant repairs.

What happens if a pipeline fails the hydrostatic test?

If a pressure drop or visible leak is detected, the pipeline section must be depressurized, inspected, and repaired. After repairs, the test is repeated until the section passes without any pressure loss.

Can hydrostatic testing damage a pipeline?

When performed correctly, the process is safe. However, applying excessive pressure or failing to remove all air can cause damage. Following established procedures and using calibrated equipment minimizes these risks.

Conclusion

Hydrostatic testing remains a cornerstone of pipeline safety management. By simulating real-world pressure conditions, it helps operators identify weaknesses before they become critical failures. Combining this method with advanced monitoring, risk assessment, and leak detection technologies ensures a robust approach to pipeline integrity and environmental protection.
