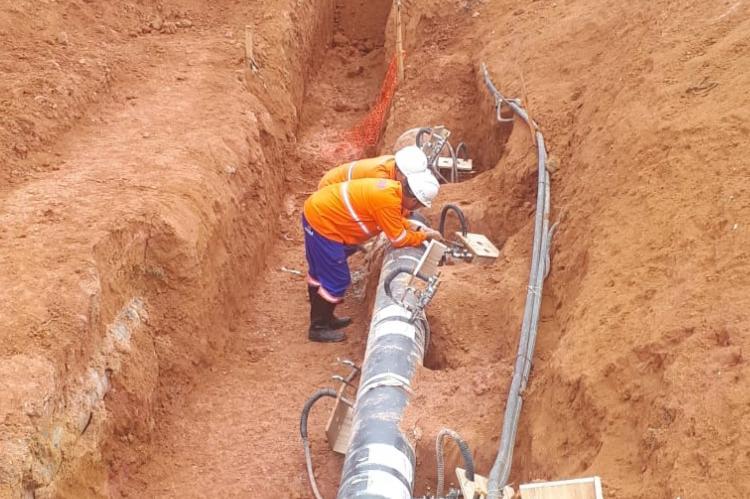

Cost of Pipeline Leak Detection Systems
Understanding the pipeline leak detection cost is essential for operators, engineers, and asset managers who want to balance safety, regulatory compliance, and operational efficiency. As pipelines age and regulatory scrutiny increases, investing in effective leak detection becomes a strategic necessity. However, the financial implications can be complex, with costs varying widely based on technology, pipeline type, and operational environment.
This article breaks down the main factors influencing expenses, compares popular detection technologies, and offers practical guidance for decision-makers. If you’re also interested in optimizing your network, consider reviewing pipeline asset management strategies to maximize your investment.
Key Factors That Influence Pipeline Leak Detection Cost
The price of implementing a leak detection solution depends on several variables. Understanding these factors helps organizations select the right approach and budget effectively.
- Pipeline Length and Diameter: Longer and larger pipelines require more sensors, data transmission infrastructure, and maintenance, directly increasing costs.
- Type of Product Transported: Hazardous or high-value products (like oil, gas, or chemicals) often demand more sensitive and sophisticated detection methods, which can be more expensive.
- Geographical Location: Remote or challenging terrains (mountains, underwater, urban areas) raise installation and maintenance expenses due to access difficulties and environmental considerations.
- Regulatory Requirements: Stricter local or international regulations may necessitate advanced systems, impacting both initial and ongoing costs.
- Integration with Existing Systems: Retrofitting older pipelines or integrating with legacy SCADA systems can add to the total investment.
For a deeper dive into operational hurdles, see the discussion on pipeline leak detection challenges.
Types of Leak Detection Technologies and Their Cost Implications
There are several main categories of leak detection systems, each with its own cost profile. Here’s a breakdown of the most common options:
External Sensor-Based Systems
These systems use sensors placed along the pipeline to detect leaks directly. Examples include fiber optic cables, acoustic sensors, and vapor sensors.
- Initial Investment: High, due to hardware, trenching, and installation labor.
- Maintenance: Moderate to high, as sensors require periodic calibration and may be affected by environmental factors.
- Typical Range: $50,000 to $200,000 per kilometer, depending on sensor type and site conditions.
Internal Computational Systems
These solutions analyze data from flow meters and pressure sensors to identify anomalies that may indicate leaks. Examples include mass balance, real-time transient modeling, and negative pressure wave analysis.
- Initial Investment: Moderate, as they often leverage existing instrumentation and SCADA systems.
- Maintenance: Low to moderate, mainly for software updates and sensor calibration.
- Typical Range: $10,000 to $50,000 per kilometer, depending on system complexity and data infrastructure.
Visual and Aerial Surveillance
Manual patrols, drones, and satellite imaging are used for visual inspection and anomaly detection.
- Initial Investment: Low to moderate, but costs can accumulate over time due to labor and equipment usage.
- Maintenance: Ongoing operational expenses for personnel, drone maintenance, and image analysis.
- Typical Range: $5,000 to $20,000 per kilometer annually, depending on frequency and technology used.
Comparing Upfront and Ongoing Expenses
When evaluating pipeline leak detection cost, it’s important to distinguish between capital expenditures (CAPEX) and operational expenditures (OPEX).
| Detection Method | CAPEX | OPEX | Notes |
|---|---|---|---|
| External Sensors | High | Moderate | Best for high-risk or high-value pipelines |
| Computational Systems | Moderate | Low | Good for retrofits and large networks |
| Visual/Aerial | Low | High | Effective for remote or inaccessible areas |
Organizations should consider not just the initial price tag but also the long-term maintenance, calibration, and potential upgrade costs. For a technical overview of detection techniques, see this comprehensive guide to pipeline leak detection methods.
Cost-Benefit Analysis: Why Invest in Leak Detection?
While the expense of advanced monitoring systems can be significant, the potential savings from preventing leaks often outweigh the investment. Key benefits include:
- Reduced Environmental Impact: Early detection minimizes spill size and cleanup costs.
- Regulatory Compliance: Avoid fines and legal action by meeting or exceeding industry standards.
- Asset Protection: Preventing leaks extends pipeline lifespan and reduces repair costs.
- Operational Continuity: Rapid response to leaks minimizes downtime and revenue loss.
For more on the accuracy and reliability of different systems, explore the article on pipeline leak detection accuracy.
Hidden and Indirect Costs to Consider
Beyond the obvious expenses, several indirect costs can impact the total cost of ownership:
- Training: Staff must be trained to operate, maintain, and respond to alerts from new systems.
- False Alarms: Low-quality systems may generate false positives, leading to unnecessary shutdowns and investigations.
- Integration: Merging new detection systems with existing infrastructure can require additional investment in IT and communications.
- Incident Reporting: Efficient pipeline incident reporting processes are critical for compliance and risk management.
How to Optimize Your Leak Detection Budget
To get the most value from your investment, consider these practical steps:
- Conduct a Risk Assessment: Prioritize sections of your network based on product type, location, and potential impact of leaks.
- Start with a Pilot: Test different technologies on a small scale to evaluate performance and cost-effectiveness.
- Leverage Smart Valves and IoT: Integrating smart components can enhance detection accuracy and reduce manual intervention.
- Plan for Scalability: Choose solutions that can grow with your network and adapt to regulatory changes.
- Monitor Performance: Regularly review system data and performance metrics to ensure ongoing value.
Frequently Asked Questions
What is the average cost to install a leak detection system on a pipeline?
The average installation cost varies significantly depending on the technology and pipeline characteristics. For external sensor systems, expect $50,000 to $200,000 per kilometer. Computational systems are typically $10,000 to $50,000 per kilometer, while visual and aerial surveillance can cost $5,000 to $20,000 per kilometer annually.
Are there ongoing expenses after the initial installation?
Yes, ongoing costs include maintenance, calibration, software updates, and periodic training. Operational expenses can range from a few thousand to tens of thousands of dollars per year, depending on the system’s complexity and the pipeline’s environment.
How can I reduce the total cost of pipeline leak detection?
To optimize spending, conduct a risk assessment to prioritize high-impact areas, start with pilot projects, and consider scalable, integrated solutions. Leveraging smart valves and IoT devices can also improve detection efficiency and reduce manual intervention costs.
Where can I learn more about detection methods and industry best practices?
For further reading, explore resources like the ScienceDirect overview of pipeline leak detection and related articles on pipeline fault detection.
